Ethernet pinout
Jump to navigation
Jump to search

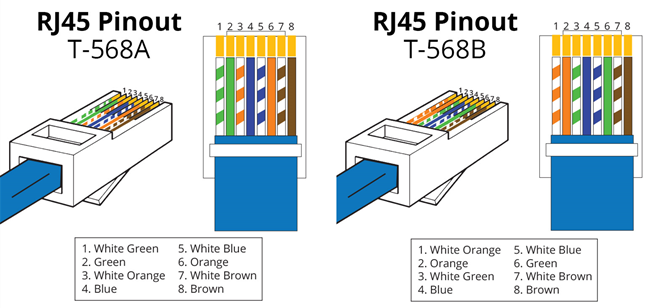

Ethernet crossed cable pinout for one end (MDI-X).
| 1 | Green /White |
| 2 | Green |
| 3 | Orange/White |
| 4 | Blue |
| 5 | Blue/White |
| 6 | Orange |
| 7 | Brown/White |
| 8 | Brown |
Ethernet straight cable pinout for both ends (MDI).
| 1 | Orange/White |
| 2 | Orange |
| 3 | Green/White |
| 4 | Blue |
| 5 | Blue/White |
| 6 | Green |
| 7 | Brown/White |
| 8 | Brown |
